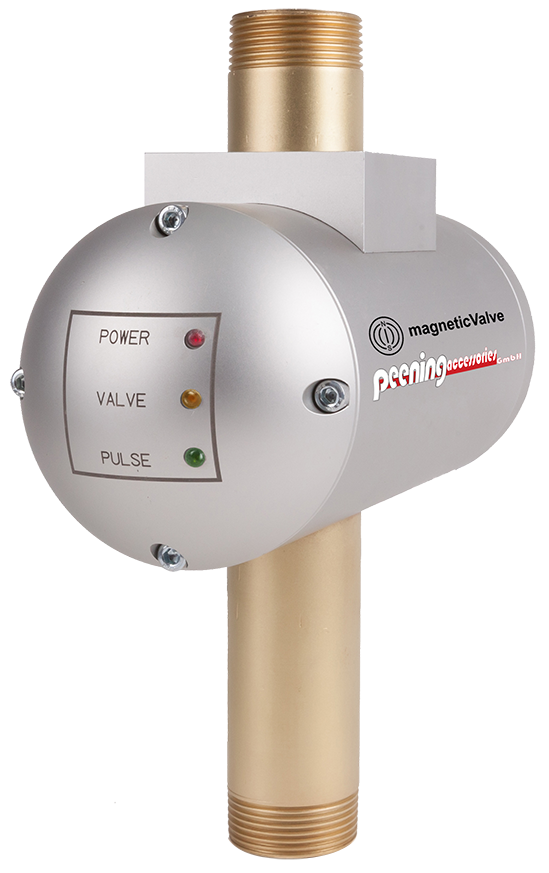

PA magneticValve: PA – Micro Media Valve
Flow rate control valve for micro size steel shot media (less than 100 microns) for peening and blasting
PA - MMV magneticValve: Range 0.3-3 kg/min (0.66-6.6 lb)
- ±10% accuracy on set point
- Power off: valve closed
- Suitable for suction blast application
- No moving parts for low-maintenance operation
- Meets AMS 2432 Rev E specifications
- Digital signal: no data transmission lost
- Less cable: Only one (1) cable per valve
- 24V DC
- Anti-leakage protection (if disconnected to FlowMaster)
- Includes a 1 meter plug and cable (option 0.5, 5 and 10m)
- CE compliant
PA FlowMaster - Media Flow Controller
Special Features:
- Cost savings: One control handles up to four valves!
- 7” touchscreen: reduces hardware button damage; flexible on design.
- Six languages as standard configuration: English, French, German, Spanish, Japanese and Chinese. Additional languages on request.
- Up to 64 recipes that can contain flow rate and product name
- Instant adjustments to up to four different shot sizes (optional)
- Instant switch from kg/min to lb/min or vice versa
- Alarm - if connection lost to valve
- Adjustable alarm supervision delay for starting the process
Standard Features:
- Displays product info: flow rate, valve status, configuration, alarm, settings, recipes
- Alarm system: flow rate upper/lower limit, connection lost
- Closed loop system, with FPGA technology, closed loop in real-time
- Remote commands and recorder output
- Digital I/O and analog signal card
- CE compliant
- Patented in USA and Europe
