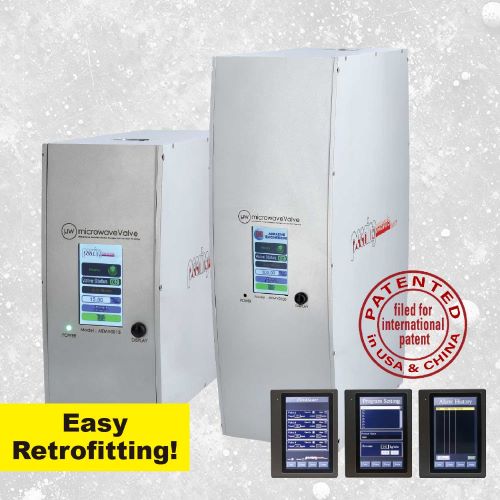

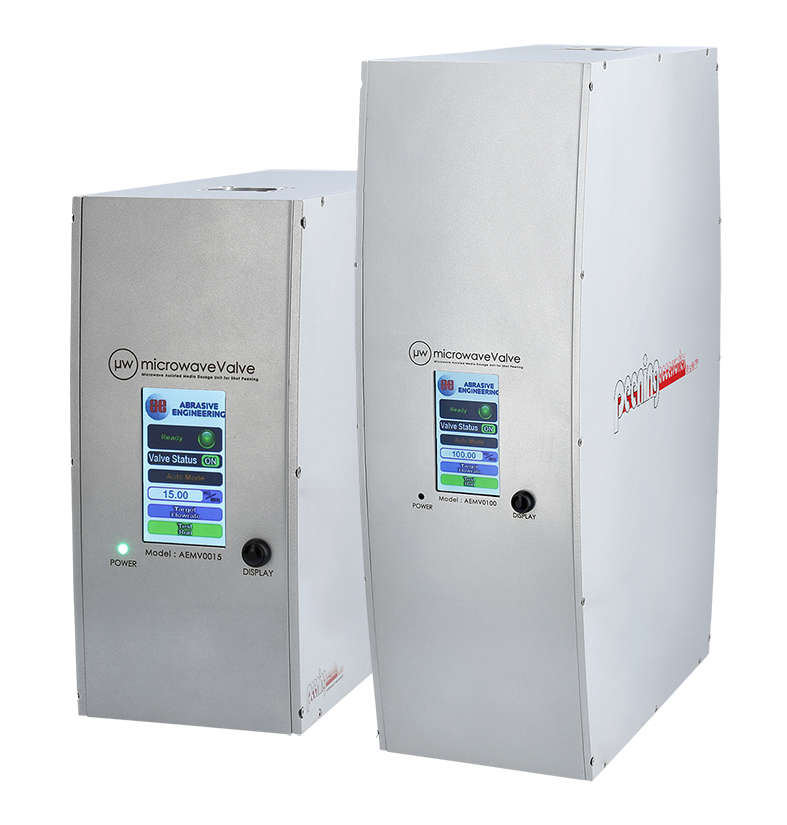

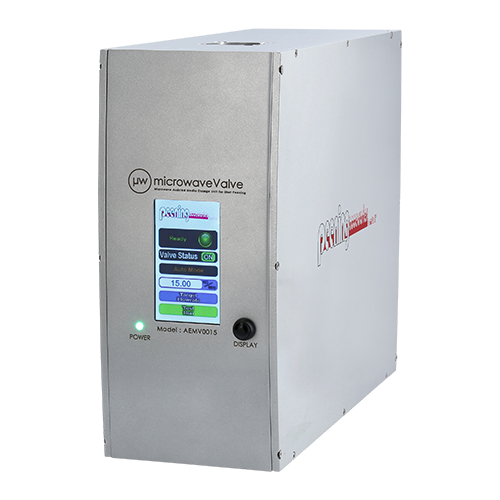

PA microwaveValve
Flow rate control valve for non-ferrous and ferrous media for peening and blasting machines
μWValve-15: Range 0-15 kg/min (ferrous)
μWValve-07: Range 0-7 kg/min (non-ferrous)
• ±5% full-scale accuracy
• Meets SAE AMS 2430 and AMS 2432 specifications
• Digital signal: no data transmission lost
• Able to include 4 media calibration in one valve
• Includes a 5 meter wire (optional: 1m)
• 24V DC
• CE compliant
• Patent pending
PA FlowMaster - Media Flow Controller
Special Features:
• Cost savings: One control handles up to four valves!
• 7” touchscreen: reduces hardware button damage;
flexible on design.
• Six languages as standard configuration: English, French,
German, Spanish, Japanese and Chinese. Additional
languages on request.
• Up to 64 recipes that can contain flow rate and product
name
• Instant adjustments to up to four different shot sizes
(optional)
• Instant switch from kg/min to lb/min or vice versa
• Alarm - if connection lost to valve
• Adjustable alarm supervision delay for starting the process
Standard Features:
• Displays product info: flow rate, valve status,
configuration, alarm, settings, recipes
• Alarm system: flow rate upper/lower limit, connection lost
• Closed loop system
• Remote commands and recorder output
• Digital I/O and analog signal card
• CE compliant
