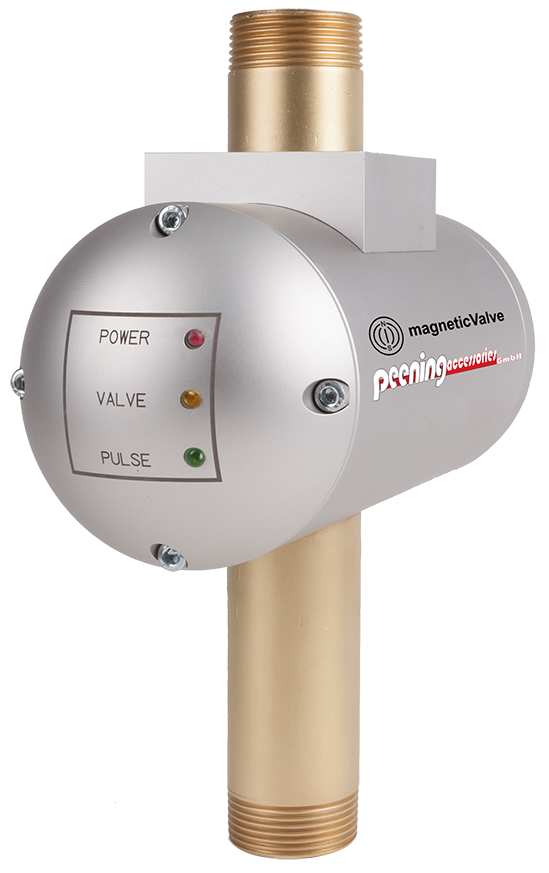

PA magneticValve: PA5, PA15, PA45

Download detailed catalogue

Flow rate control valve for steel shot media and cut wire for peening and blasting machines

PA5 magneticValve: Range 0-5 kg/min (0-11 lb)
PA15 magneticValve: Range 0-15 kg/min (0-33 lb)
PA45 magneticValve: Range 0-45 kg/min (0-99 lb)

• ±10% accuracy on set point, ±5% full scale
• Power off: valve closed
• No moving parts for low-maintenance operation
• Meets AMS 2432 Rev E specifications
• Digital signal: no data transmission lost
• Less cable: Only one (1) cable per valve
• 24V DC
• Anti-leakage protection (if disconnected to FlowMaster)
• Includes a 1 meter plug and cable (option 0.5, 5 and 10m)
• CE compliant
• Patent pending

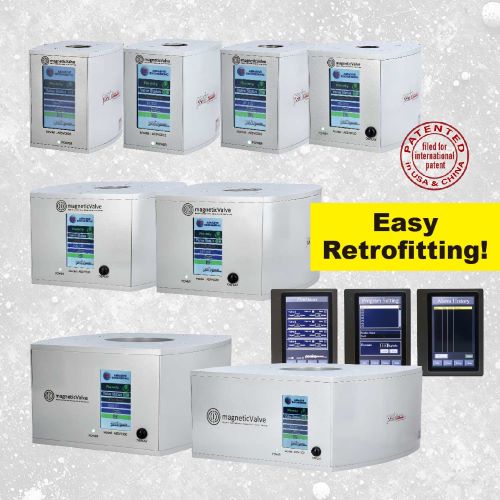

PA magneticValve: PA150, PA500, PA150NS, PA500NS

Download detailed catalogue

PA150 magneticValve: Range 15-150 kg/min
PA150NS magneticValve: Range 15-150 kg/min
PA500 magneticValve: Range 50-500 kg/min
PA500NS magneticValve: Range 50-500 kg/min

• ±10% accuracy on set point
• Power off: valve closed
• No moving parts for low-maintenance operation
• Meets AMS 2432 Rev E specifications
• Digital signal: no data transmission lost
• 3 Operating Modes:
  - HMI Control,
  - FlowMaster Control,
  - Analog and Digital IO Connection
• Anti-leakage protection (if disconnected to FlowMaster)
• Includes a 1-meter plug and cable (option 0.5, 5 and 10m)
• Constant Voltage and Constant Current DC Power Supply
• CE compliant
• Patent pending

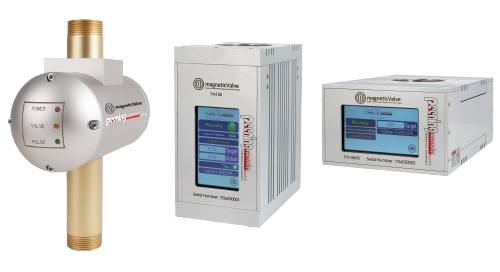

PA FlowMaster - Media Flow Controller

Download detailed catalogue

Download user manual

Special Features:

• Cost savings: One control handles up to four valves!
• 7” touchscreen: reduces hardware button damage; flexible on design.
• Six languages as standard configuration: English, French, German, Spanish, Japanese and Chinese. Additional languages on request.
• Up to 64 recipes that can contain flow rate and product name
• Instant adjustments to up to four different shot sizes (optional)
• Instant switch from kg/min to lb/min or vice versa
• Alarm - if connection lost to valve
• Adjustable alarm supervision delay for starting the process

​Standard Features:

• Displays product info: flow rate, valve status, configuration, alarm, settings, recipes
• Alarm system: flow rate upper/lower limit, connection lost
• Closed loop system, with FPGA technology, closed loop in real-time
• Remote commands and recorder output
• Digital I/O and analog signal card
• CE compliant
• Patented in USA and Europe
